Overview

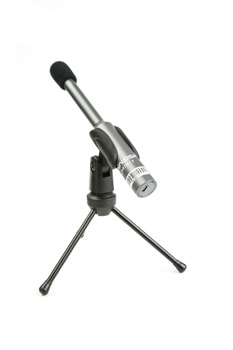

The UMIK-1 is a USB omnidirectional measurement microphone designed for straightforward acoustic analysis. Ideal for speaker and room measurements as well as recordings, it delivers precise, low-noise results you can trust. It requires no driver installation, supports all major operating systems (Windows, Mac, iPad with Camera Connection Kit), and comes with a unique calibration file linked to its serial number for exact measurements. Paired with recommended acoustic software, it offers a seamless plug-and-play solution for accurate sound assessment.
Specs
Capsule Type & Polar pattern:
6mm electret, Omni-Directional
Frequency response:
20 Hz - 20kHz
USB Audio Class:
USB Audio class 1.0
Driverless interface for Windows, Mac & Linux
Connector:
miniUSB connector (v1 / Before Jan 2021)USB Type C connector (v2 / After Jan 2021)
Calibration File:
Unique microphone calibration
.txt file referenced to the Serial Number Includes on axis Frequency Amplitude / Sensitivity drift
Resolution & Sample rate:
24bit ADC @ 48kHz
Max SPL for 1 % TDH @ 1kHz:
133 dB SPL @OdB gain setting
Output noise level at max IGPA:
-74dBFS
Weight:

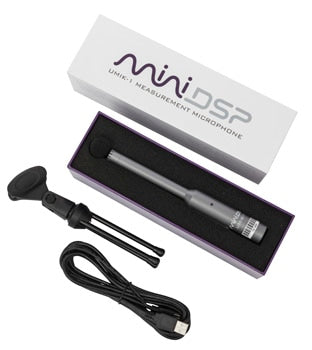

120gm for microphone, 600gm complete kit with accessories
Power:
USB Powered (5V) - Blue LED indicates unit under Power
Clamp thread size: 3/8"-16
Win/Mac Compatible✔
