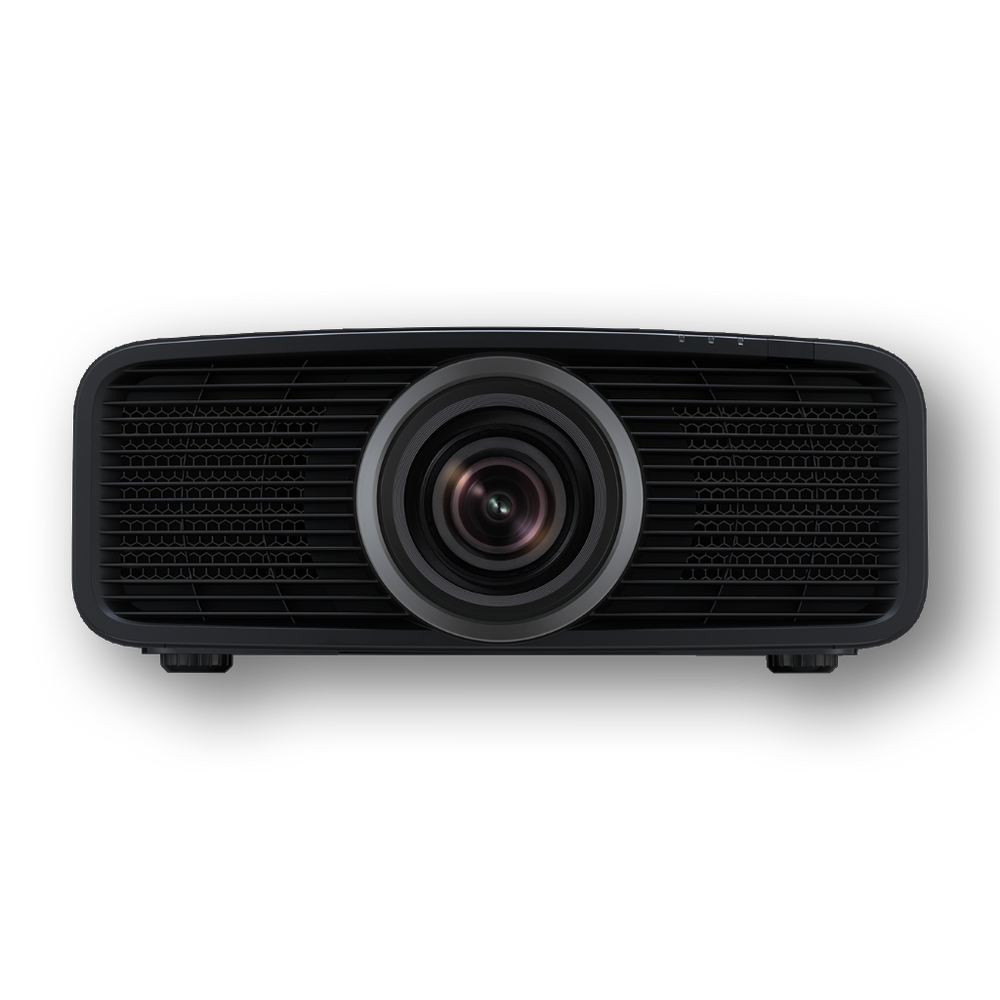

JVC DLA-NZ500 Projector

Overview

The NZ500 offers incredible performance for home theater enthusiasts who want a true 4K experience at a more accessible price point. With a brightness of 2,000 lumens and a 40,000:1 native contrast ratio, this projector delivers fantastic image quality for most viewing environments with smaller screens.

You'll experience sharp, vivid details paired with impressive HDR performance, thanks to JVC's industry-leading dynamic tone mapping and Gen 2 Frame Adapt HDR technology. If you are looking for a solid projector that won't break the bank, the NZ500 is an excellent choice. And with 5 lens memory presets, you’ll be able to adjust for various aspect ratio formats with ease.

Specs

Display & Imaging

• Projection Technology: 0.69-inch Native 4K D-ILA Device (4096 x 2160) x3
• Resolution: 4,096 x 2,160 (Native 4K)
• Lens: 1.6x Motorized Zoom & Focus, Native 4K Lens
• Lens Diameter: 65 mm
• Lens Shift (Motorized, 16:9 Aspect Ratio): Vertical ±70%, Horizontal ±28%
• Projection Size: 60" – 200"


Light Source & Performance

• Light Source: BLU-Escent Laser Diode
• Brightness: 2,000 Lumens
• Contrast Ratio: Native 40,000:1 (Dynamic ∞:1)
• Color Gamut: sRGB 100%

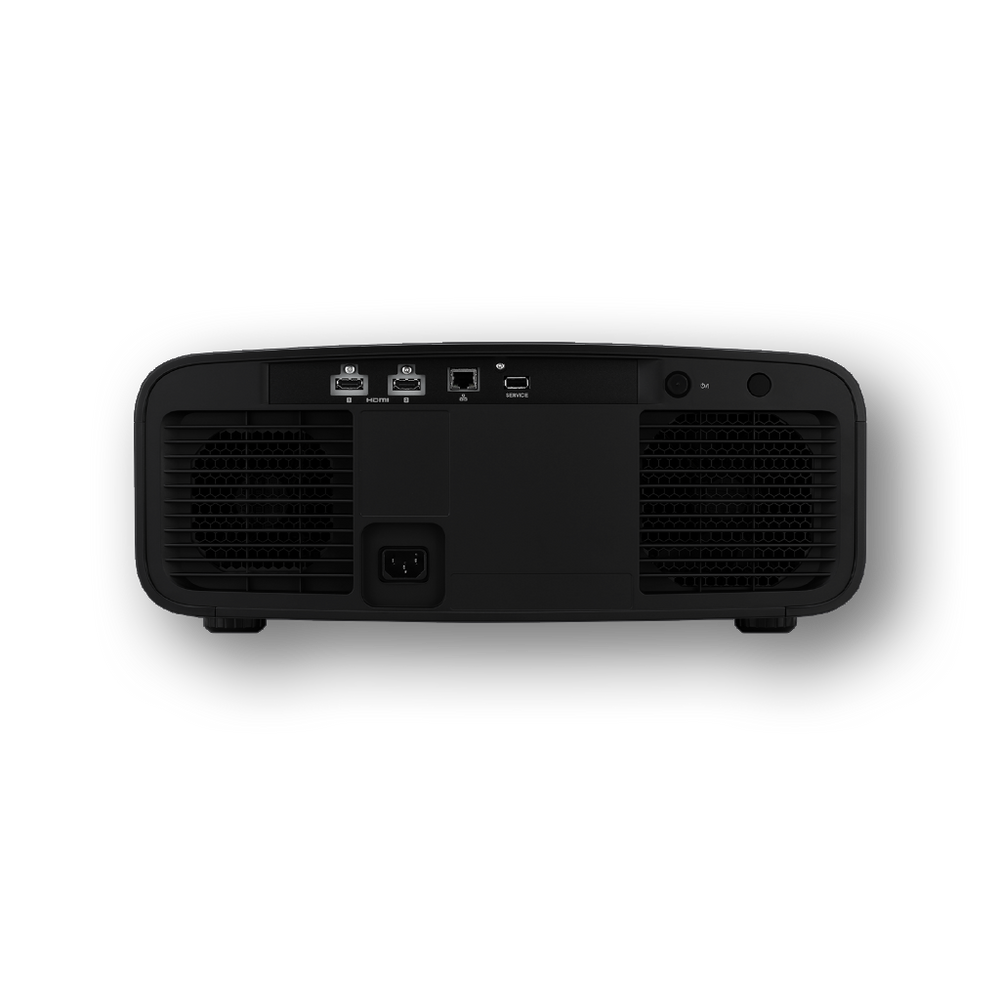

Connectivity & Inputs

• HDMI Inputs: 2x HDMI (32 Gbps, HDCP 2.3, no CEC support)

Control & Outputs:

• Trigger: 1x (Mini Jack, DC 12V/100mA)
• 3D Synchro: 1x (Mini Din 3-pin)
• RS-232C: 1x (D-sub 9-pin)
• LAN: 1x (RJ-45)
• USB Type A (Service Port)



Supported Video Formats

Digital Video Input:

• 480p, 576p, 720p (50/60 Hz)
• 1080p (24–60 Hz), 2K/4K (up to 60 Hz)


PC Input Support (HDMI) Resolutions:

• VGA (640x480) up to WQHD (2560x1440) @ 60/120 Hz



3D Support

• Frame Packing: 720p (50/60 Hz), 1080p (24 Hz)
• Side-by-Side (Half): 720p (50/60 Hz), 1080p (24/50/60 Hz), 1080i (50/60 Hz)
• Top & Bottom: 720p (50/60 Hz), 1080p (24 Hz)

Power & Operating Conditions

• Power Consumption: 280W (Projector in use)
• Standby Mode: 0.3W (Eco-mode)
• Networked Standby: 1.5W (LAN)
• Fan Noise: 23dB (Laser Diode power at minimum)
• Power Supply: AC 100-240V, 50/60 Hz


Dimensions & Weight

• Dimensions (W x H x D, including feet): 450 x 181 x 479 mm (17-23/32" x 7-5/32" x 18-7/8")
• Weight: 14.6 kg (32.2 lbs)

Warranty

JVC D-ILA Projector Warranty

• Standard coverage: A 3-year parts and labor warranty is provided for all D-ILA projectors purchased from an authorized JVC dealer.
• Advanced replacement: During the first year of ownership, an advanced replacement program is included for new, qualifying models, such as the NZ-series. This ensures minimal downtime if a defect occurs.
• Proof of purchase: A dated sales receipt or invoice is required to validate the warranty. Keep this document in a safe place.
• Authorized dealer requirement: The full warranty is only valid for products purchased from authorized JVC dealers in the United States. JVC will not honor warranties on counterfeit products or those purchased from unauthorized resellers, such as certain online marketplaces.



Service process:

• During the first year: Contact us to initiate the advanced replacement process.
• After the first year: Contact the JVCKENWOOD Customer Care Center at (800) 252-5722 to obtain a Return Materials Authorization (RMA) number and locate an authorized service center.
• Service location: Home theater projectors are serviced by authorized service centers, not the JVC factory.
• Non-transferable: The warranty applies to the original purchaser of the product.
