Overview

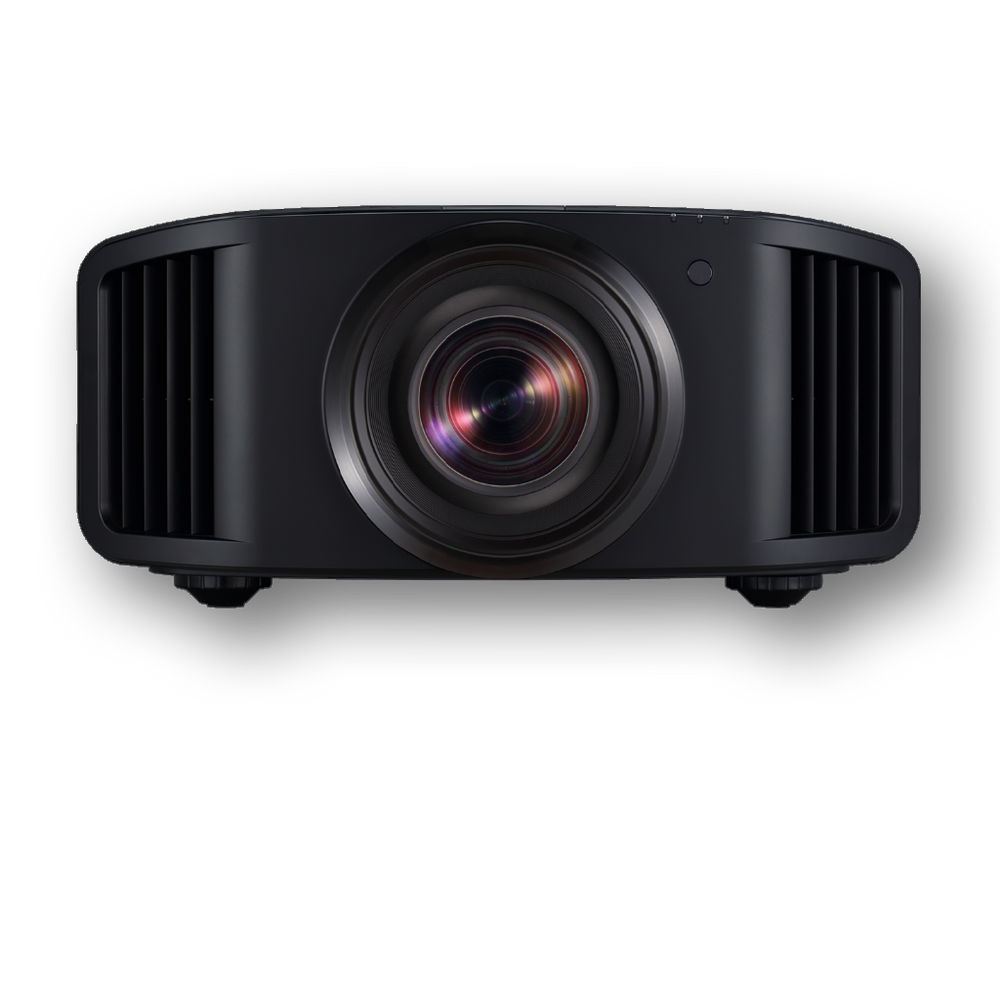

If you demand the very best image for your home theater, you should ABSOLUTELY consider JVC's flagship model, the DLA-NZ900. Photographers know just how much of an impact quality glass provides. The NZ900's monstrous 100mm all-glass lens produces an incredible image that is nothing short of stunning. I had the privilege of seeing the NZ900 in person, and it was breathtaking.
It's easy to make a bright projector. But often, adding brightness comes at the sacrifice of black level, native contrast, and color accuracy. When it came to designing the NZ900, JVC made sure that it checked all the boxes.
With 3,300 lumens of brightness and a staggering 150,000:1 native contrast ratio, the NZ900 provides the deepest blacks, the most vibrant highlights, and the sharpest details you can imagine. If you have a really large screen or if you are obsessed with building a home theater dedicated to the finest viewing experience, the NZ900 will elevate your image to the next level.
Specs
Display & Imaging
-
Projection Technology: 0.69-inch Native 4K D-ILA Device (4096 x 2160) x3
-
Resolution: 8,192 x 4,320 (Gen2 8K/e-shiftX)
-
Lens: 2.0x Motorized Zoom & Focus, All-Glass Lens
-
Lens Diameter: 100 mm
- Lens Shift (Motorized, 16:9 Aspect Ratio):
-
Projection Size: 60" – 300"
Light Source & Performance
-
Light Source: BLU-Escent Laser Diode
-
Brightness: 3,300 Lumens
-
Contrast Ratio: 100,000:1; Dynamic: ∞:1
-
Color Gamut: 100% DCI-P3 with Cinema Filter engaged
Connectivity & Inputs
-
HDMI Inputs: 2x HDMI (48 Gbps, HDCP 2.3, no CEC support)
-
Control & Outputs: LAN: 1 (RJ-45), RS-232C: 1 (D-sub 9-pin), Trigger: 1 (Mini Jack, DC12V/100mA)
3D Synchro: 1 (Mini-Din 3-pin), Service: 1 (USB Type A, for firmware update)
Supported Video Formats
-
Digital Video Input: Up to 8K/60p and 4K/120p
PC Input Support (HDMI)
-
Resolutions: VGA (640x480) up to WQHD (2560x1440) @ 60/120 Hz
3D Support
-
Frame Packing: 720p (50/60 Hz), 1080p (24 Hz)
-
Side-by-Side (Half): 720p (50/60 Hz), 1080p (24/50/60 Hz), 1080i (50/60 Hz)
-
Top & Bottom: 720p (50/60 Hz), 1080p (24 Hz)
Power & Operating Conditions
-
Power Consumption: 440W (Projector in use)
-
Standby Mode: 0.3W (Eco-mode)
-
Networked Standby: 1.5W (LAN)
-
Fan Noise: 24dB (Laser Diode power at minimum)
-
Power Supply: AC 100-240V, 50/60 Hz
Dimensions & Weight
-
Dimensions (W x H x D, including feet): 500 x 234 x 528 mm (19-11/16" x 9-7/32" x 20-13/16")
-
Weight: 25.3 kg (55.7 lbs)
Warranty
JVC D-ILA Projector Warranty
- Standard coverage: A 3-year parts and labor warranty is provided for all D-ILA projectors purchased from an authorized JVC dealer.
-
Advanced replacement: During the first year of ownership, an advanced replacement program is included for new, qualifying models, such as the NZ-series. This ensures minimal downtime if a defect occurs.
-
Proof of purchase: A dated sales receipt or invoice is required to validate the warranty. Keep this document in a safe place.
- Authorized dealer requirement: The full warranty is only valid for products purchased from authorized JVC dealers in the United States. JVC will not honor warranties on counterfeit products or those purchased from unauthorized resellers, such as certain online marketplaces.
Service process:
- During the first year: Contact us to initiate the advanced replacement process.
- After the first year: Contact the JVCKENWOOD Customer Care Center at (800) 252-5722 to obtain a Return Materials Authorization (RMA) number and locate an authorized service center.
- Service location: Home theater projectors are serviced by authorized service centers, not the JVC factory.
- Non-transferable: The warranty applies to the original purchaser of the product.
